Model |
Arm form Type |
Suitable I.M.M ton |
Vertical mm |
Crosswise mm |
Traverse mm |
Posture |
Max Load KG |
Minimun Take out sec |
Drive Way Z.Y.X |
Air Pressure |
Air Usage nl |
Power |
Net Weight kg |
| STDW-2200 | telescopic | 1300-2500 | 2200 | 1700 | 3080 | 90° | 35KG | 3.0 |
X.Y.Z AC Servo |
0.5Mpa | 6 | AC220V | 1500 |
| STDW-2500 | 1600-3000 | 2500 | 1950 |
3500 (4000) |
3.5 | 1800 |

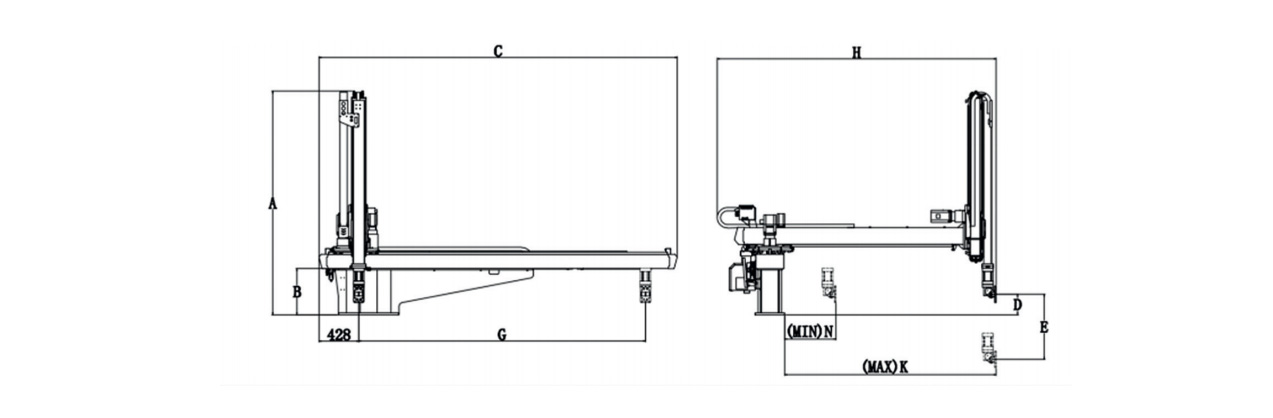

| Model | A | B | C | D | E | F | G | H | 1 | J | K | L | M | N |
| STDW-2200 | 2450 | 550 | 3848 | 270 | 2200 | / | 3080 | 3000 | 2270 | / | / | 550 | ||
| STDW-2500 | 2650 | 550 |
4268 (4768) |
270 | 2500 |
3500 (4000) |
3250 | 2520 | 550 |
By reason of improved,specifications and appearance change,no further notice,please understanding
