Model |
Arm form Type |
Suitable I.M.M ton |
Vertical mm |
Crosswise mm |
Traverse mm |
Posture |
Max Load KG |
Minimun Take out sec |
Drive Way Z.Y.X |
Air Pressure |
Air Usage nl |
Power |
Net Weight kg |
| STAW-1100 | telescopic | 200-400 | 1100 | 710 | 1600 | 90° | 8KG | 1.5 |
X.Y.Z AC Servo |
0.5Mpa | 1.5 | AC220V | 360 |
| STAW-1300 | 300-600 | 1300 | 1780 | 1.7 | 400 |

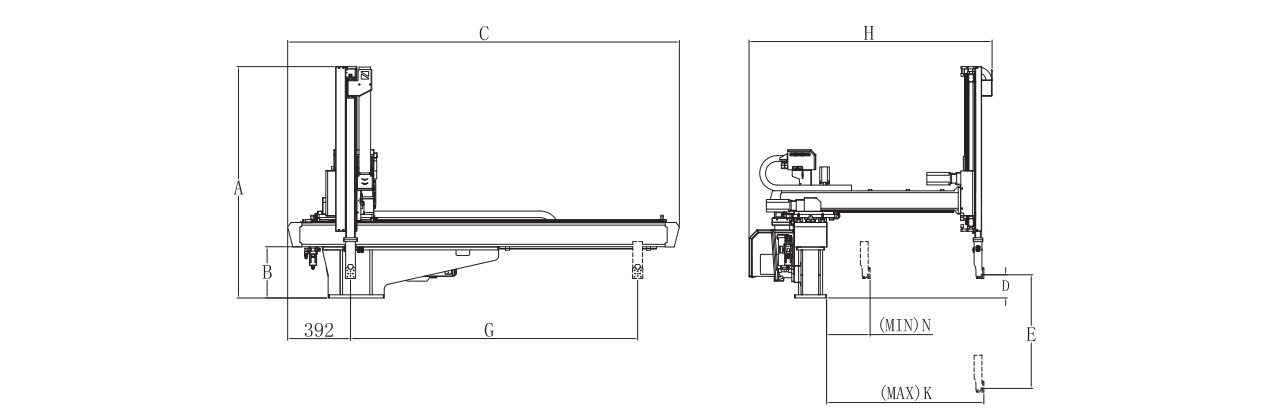

| Model | A | B | C | D | E | F | G | H | 1 | J | K | L | M | N |
| STAW-1100 | 1480 | 320 | 2226 | 145 | 1100 | / | 1600 | 1517 | / | / | 982 | / | / | 272 |
| STAW-1300 | 1600 | 320 | 2446 | 145 | 1300 | / | 1780 | 1517 | / | 982 | / | / | 272 |
By reason of improved,specifications and appearance change,no further notice,please understanding
