Model |
Arm form Type |
Suitable I.M.M ton |
Vertical mm |
Crosswise mm |
Traverse mm |
Posture |
Max Load KG |
Minimun Take out sec |
Drive Way Z.Y.X |
Air Pressure |
Air Usage nl |
Power |
Net Weight kg |
| STCW-1800 | telescopic | 700-1250 | 1800 | 1380 |
2730 (3210) |
90° | 25KG | 2.7 |
X.Y.Z AC Servo |
0.5Mpa | 4 | AC220V | 850 |
| STCW-2000 | 800-1600 | 2000 | 1380 | 3210 | 2.8 | 950 |

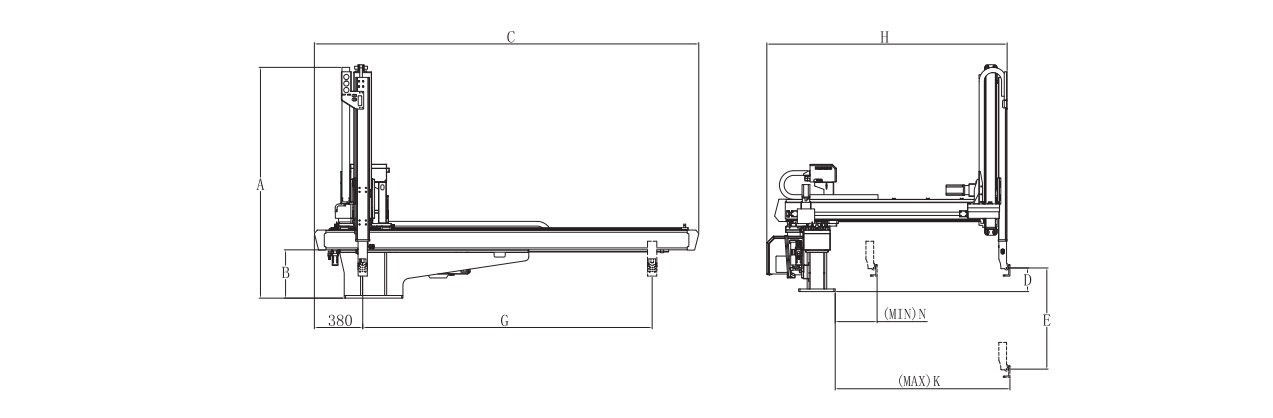

| Model | A | B | C | D | E | F | G | H | 1 | J | K | L | M | N |
| STCW-1800 | 2100 | 530 |
3440 (3920) |
225 | 1800 | / |
2730 (3210) |
2100 | / | / | 1615 | / | / | 420 |
| STCW-2000 | 2220 | 530 | 3920 | 225 | 2000 | 3210 | 2280 | 1800 | 420 |
By reason of improved,specifications and appearance change,no further notice,please understanding
