Model |
Arm form Type |
Suitable I.M.M ton |
Vertical mm |
Crosswise mm |
Traverse mm |
Posture |
Max Load KG |
Minimun Take out sec |
Drive Way Z.Y.X |
Air Pressure |
Air Usage nl |
Power |
Net Weight kg |

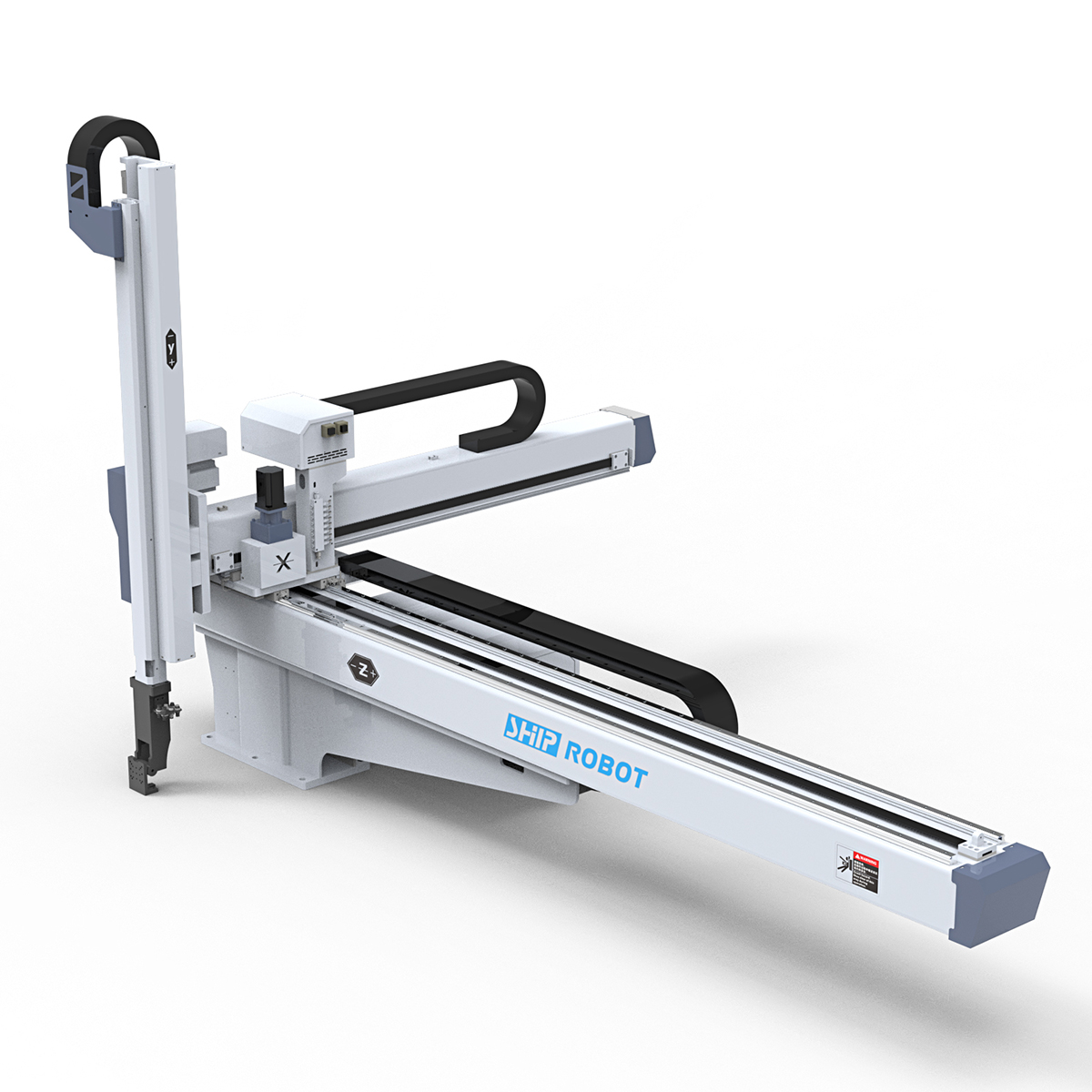

| STBW-1500 |
telescopic |
530-1000 | 1500 | 1080 | 2190 | 90° | 15KG | 2.5 |
X.Y.Z AC Servo |
0.5Mpa | 2 | AC220V | 550 |

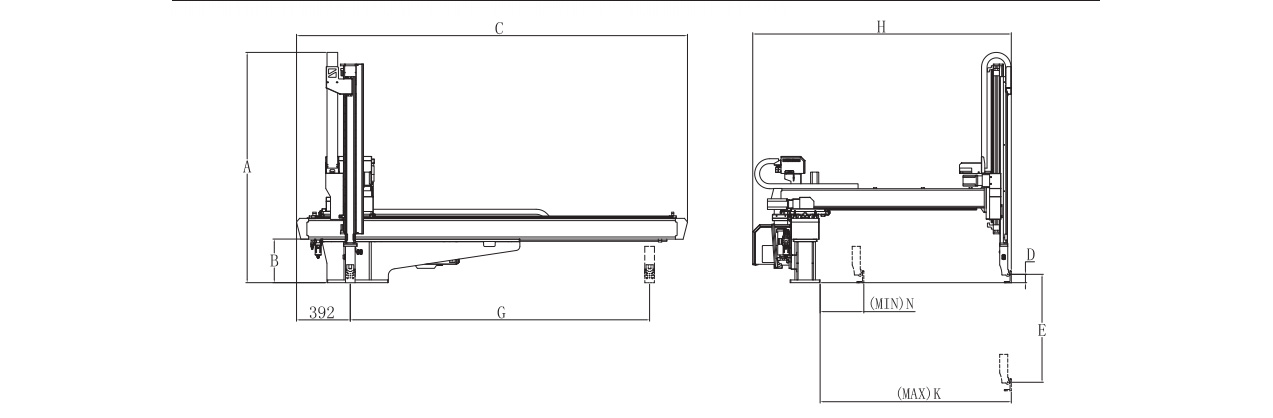

| Model | A | B | C | D | E | F | G | H | 1 | J | K | L | M | N |
| STBW-1500 | 1688 | 320 | 2866 | 62 | 1500 | / | 2190 | 1895 | / | / | 1400 | / | / | 320 |
By reason of improved,specifications and appearance change,no further notice,please understanding
