Model |
Arm form Type |
Suitable I.M.M ton |
Vertical mm |
Crosswise mm |
Traverse mm |
Posture |
Max Load KG |
Minimun Take out sec |
Drive Way Z.Y.X |
Air Pressure |
Air Usage nl |
Power |
Net Weight kg |

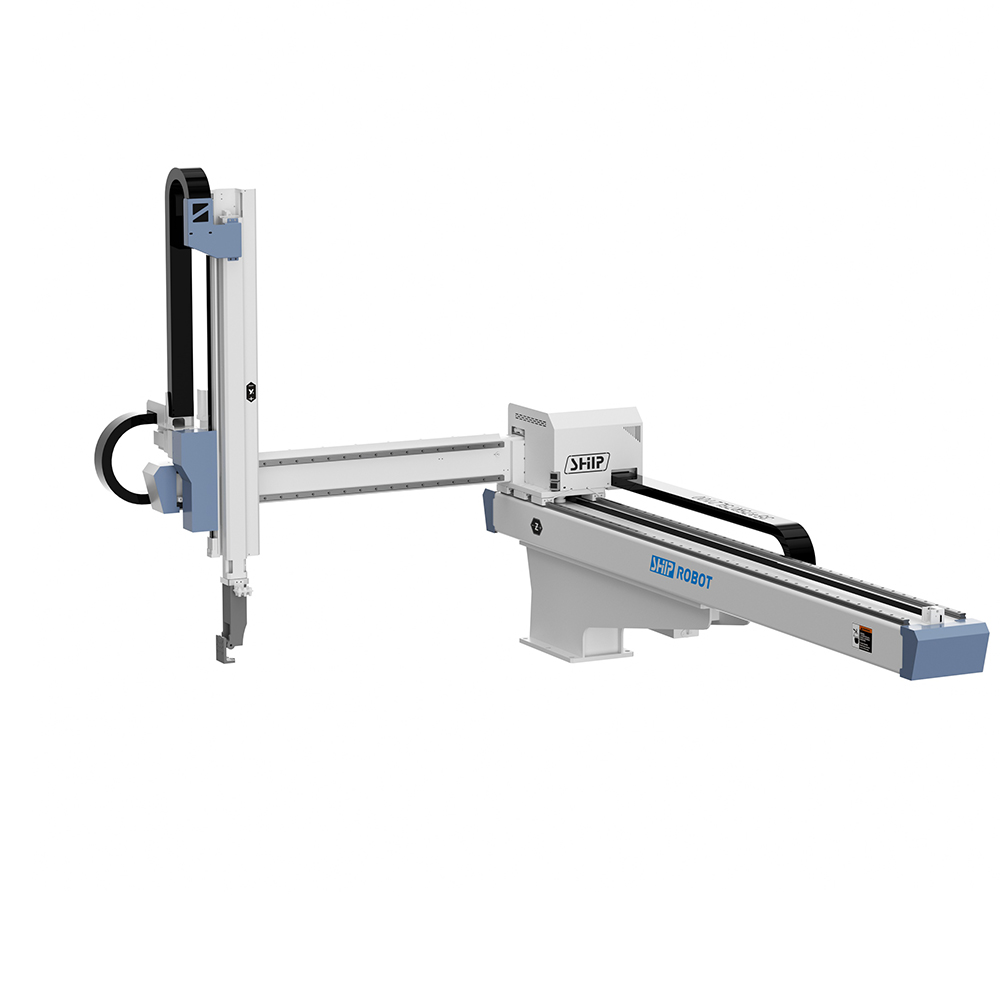

| SVBW-1300S | telescopic | 400-700 | 1300 | 950 |
1870 (2290) |
90° | 12KG | 2.4 |
X.Y.Z AC Servo |
0.5Mpa | 1.5 | AC220V | 500 |
| SVBW-1300D | S:700D:700 | ||||||||||||
| SVBW-1500S | 600-1000 | 1500 | 950 |
2170 (2590) |
2.5 | 650 | |||||||
| SVBW-1500D | S:700 D:700 |
| Model | A | B | C | D | E | F | G | H | 1 | J | K | L | M | N | 0 | P | Q |
| SVBW-1300S | 1759 |
2537 (2957) |
1870 (2290) |
208 | 439 | 1300 | 126 | 440 | 1446 | 536 | 1179 | 978 | 201 | - | |||
| SVBW-1300D | 125 | 773 | 406 | 259 | 773 | 147 | |||||||||||
| SVBW-1500S | 1879 |
2837 (3257) |
2170 (2590) |
1500 | - | 978 | 201 | - | - | ||||||||
| SVBW-1500D | 125 | 773 | 406 | 259 | 773 | 147 |
By reason of improved,specifications and appearance change,no further notice,please understanding
